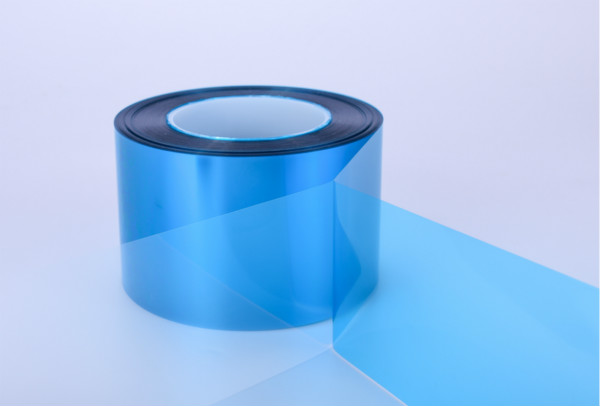

Process Protective Film
The process protection film is a product that is rolled at one time, and then cut into different widths of tape after being glued by downstream customers. It is widely used in process protection processing fields such as steel plate protection, aluminum plate protection, wafer cutting, etc.
It has the characteristics of uniform thickness distribution, stable impurity control, and excellent flattening performance.

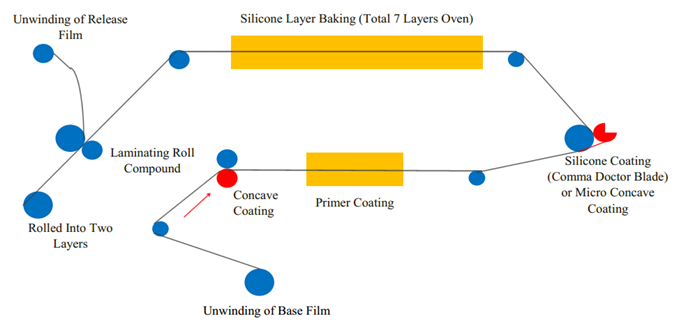

Coating Process
Production Capacity
| Item | Unit | Eigenvalues | Testing Method |
|---|---|---|---|
| Apperance | – | No impurities, offset printing, etc. | Visually |
| Thickness | Micron | Customised | ASTM D 3652 |
| Transmittance | % | >90 % | ASTM D 1003 |
| Haze | % | <1 | ASTM D 1003 |
| Rainbow Pattern | – | No | ISO 12647 |
| Peeling Force | g | Customised | Peeling force machine |
| Upper Protective Layer Tearing Force | g | Customised | |
| Release Film Tearing Force | g | Customised | |
| Interlayer Force | g | Customised | |
| Hardness | H | Customised | ASTM D3363 |
| Adhesion of Hardened Layer | B | 5B | ASTM D3359 |
| Abrasion Resistance | (1000g/time) | ＞ 300 cycles without scratch | ASTM D4060 （1000g/time) |
| Water Drop Angle | ° | >100 | Water Drop Angle Tester |
| Water Drop Angle after Abrasion | ° | >70 | |
| Adhesion | – | OK | – |
| Weatherability | H | 72 | 55℃*95%RH*72H |
| Boiled Test | 100℃/Hour | OK | – |
Printing
Die Cuting
