Die Cutting

YDX Die-cutting Division has been in business for 13 years, and has gradually grown from a small scale to a supplier for brand companies. We have rich experience in complex applications of composite molding of different materials.

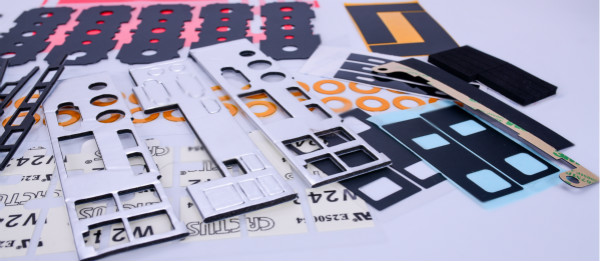

The main materials for our precision die-cutting are tape, adhesive, foam, sponge, mesh, fabric, plastic,
Protective Film and rubber.

What we have?

3000㎡ die cutting processing workshops which are dust-free clean room standard;
A team of structural engineers with an average of 10 years of extensive experience in the industry;
Senior professional and knowledge-based quality control team;
65% of the employees have served the company for more than 5 years.

We have flexible and diverse die cutting capabilities, and always working hard to provide customers with the best application solutions, resulting in saving costs and Improving efficiency.

Contact us to provide you with samples and die cutting solutions.

Our main processes are as follows:

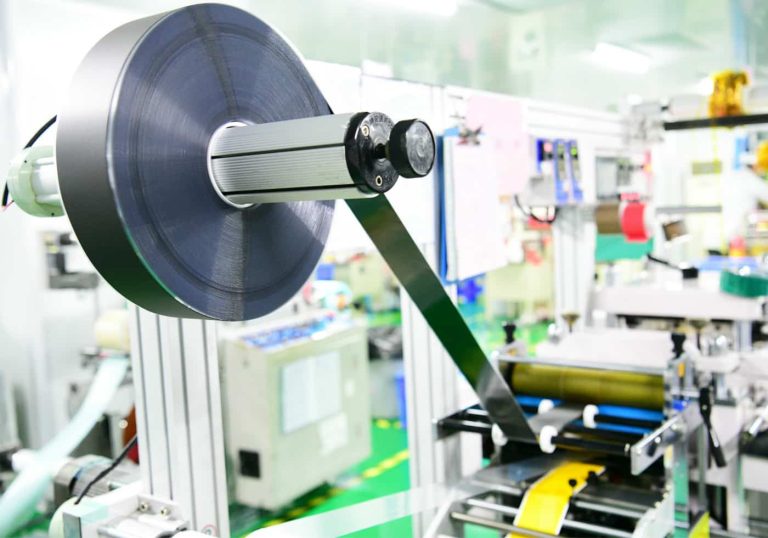

By applying rolling pressure on the circular knife for cutting, it can meet products with complex multilayer structures, improve products precision and productivity.
12-station & 7-station rotary die cutting equipment * 8 sets
Production precision: ± 0.05
Production capacity: 56M / min

The product is formed by pneumatic mechanical pressure using a mold, which can meet the die-cutting products within a production tolerance within ± 0.05.
Flat die cutting equipment * 35
Production precision: within ± 0.05
Production capacity: 4,000 punches / Hour

In quick punch production, the material is punched by a set of up and down molds, which is suitable for high output and high precision’s material.

Compound die cutting performs multiple steps in one pass. The compound die cutting implements more than one operation during the cutting cycle.

During the punch pressing process, the material is punched from the top die to the top through the air pressure, and the punching production efficiency is higher.

Two or more materials are compounded by a compound machine and then formed. The most common materials are sponge, foam, rubber or film.
It is important to add pressure-sensitive adhesive to the substrate to complete the lamination between two substrates without air residue or pollution.

The custom graphic glue is compounded on the material while die-cutting, leaving the glue only on the designated area. Filters and rows gas assemblies often require a partitioned adhesive pattern. Many applications require filters and vents to block dust, dirt and moisture Air to protect components in the product while allowing air and sound to pass. The precise area of the adhesive ensures firmness adhesive, while keeping the filter or screen operating normally.

Half-cutting is a kind of composite product and PET release film, cut through the product but not cut through the PET during die cutting release film, so that the product can be placed in a roll with the core, and it is easier to place.

When die-cutting the product, the upper and lower release films are extended beyond the product to form a handle and backing paper to form the product and backing paper make it easy to access individual products.

This process does not take the material away from the original tape, but leaves a perforated area on the tape until needed when separating them.


What are the strengths?

From raw material coating to printing to die-cutting finished product shipment, it can better control product quality and performance and reduce costs.

According to the customer’s product and performance requirements, from the choice of raw materials to die-cut molding products to customize the corresponding program.

When the customer’s product design changes, quickly change from the raw material design to the die-cutting design, and respond to the change at the fastest speed.

Sign the sample acceptance letter according to the customer’s requirements, strictly control the quality of the shipment, and deliver the goods in accordance with the samples.
